USS Scorpion The Most Probable Cause For The Loss


If you are a regular reader of my articles you know I present events like the loss of the USS Scorpion and the most popular or probable causes of the event. I try to treat each theory fairly. However, I always keep my most preferred theory to myself.

I do that for a reason. You are intelligent and I want you to form your own opinion. Whether we agree or not is irrelevant. I view my job as to present as much of the facts and evidence as possible, to allow you to form your own intelligent opinion.

I do, fairly often, get requests for what my opinion or theory is. Even in private, I decline to answer that question. I do not want anyone to simply take my word for it, I want you to decide for yourself. Only once did I bow to pressure and make public my personal thoughts (that was about the submarine H.L. Hunley). Now for the second time I will bow to pressure and state my opinion as to the cause of the loss of the USS Scorpion.

First I want to say my opinion is based on circumstantial evidence and not a thorough examination of the debris field and the ship itself. Only a thorough examination of the debris field and the ship itself will ever provide the conclusive evidence as to the loss of the USS Scorpion. The United States Navy has made that impossible by withholding some of the pertinent information.

There is no real reason to continue to withhold that information. The last sister ship of the Scorpion was taken out of service and decommissioned decades ago. Taking a look at the many theories and the causes they point to, there no longer exists a reason to withhold information as well.

The theory one of Scorpion’s own weapons caused the accident. The weapons the Scorpion carried were taken out of service and no longer used by the navy long before the last sister ship of the Scorpion was decommissioned.

The theory that the Soviet Navy somehow caused the loss of the USS Scorpion. The Union of Soviet Socialist Republics (USSR) has not existed for almost three decades. That nation does not exist now.

The theory that cost cutting measures caused the loss of the USS Scorpion. The decision to reduce the Scorpion’s last overhaul from 36 months to 6 months was a bad decision. To be fair though, it was a decision made because of the escalating costs of the war in Vietnam. A war where, except for the navy S.E.AL.S., navy river boats, and naval air, the navy had very little role. Yet our submarine force was a major expenditure on the navy.

I also want to point out that after the loss of the Scorpion, naval cost cutting ideas involving the submarine force were all canceled. No more abbreviated overhauls. Also those submarines that had not under gone conversion to the Subsafe program were immediately scheduled to enter the shipyard to undergo Subsafe conversion. (I will add a postscript to this article that explains the Subsafe program as a refresher for those of you who know, and as an introduction for those who do not.)

In previous articles I have published some of the more widespread and popular theories. Also, using unclassified sources, I have tried to give the reader as accurate an understanding of the conditions at the time. Both the conditions of the world and the ship. The climate of 1968 was radically different than 2018, politically, technologically, and for the military in general and the navy specifically. To judge events and people against the 21st century in those and other areas would not only be unfair, but will prevent us from arriving at the true cause and responsibility for the event. I encourage you to do further research on your own into that unique period and event. It is simply not possible for me to cover in detail the time period in which this tragedy took place.

One quick note. A reminder from one of my previous articles on the USS Scorpion. The Scorpion had not yet under gone conversion to the Subsafe program. One of the system changes during Subsafe conversion is to the emergency blow system (EMBT). This system failed on the USS Thresher five years earlier. That left the Scorpion with two other ways of expelling water from the main ballast tanks. The normal blow, which as the name implies, was the normal method for this class of submarine to surface by blowing main ballast tanks. And the low pressure blow. This method involves the submarine driving to the surface and then blowing the ballast tanks dry with low pressure air.

At the time of the loss of the USS Scorpion the EMBT system had not been updated to comply with Subsafe. The shipyard said the system worked effectively and properly and was fit for service. The United States Navy said the system did not work effectively and properly and ordered the system to be danger tagged out of service.

I am not going to cover in this article other ships near the Scorpion or any mission she was on or may have recently completed when this tragic event occurred. I am only going to cover the series of events which caused the USS Scorpion to exceed its maximum diving depth, eventually coming to rest 10,000 feet below on the bottom of the Atlantic Ocean, where it is today.

At its operating depth for this patrol (300 feet or less, see other articles). The Scorpion began flooding through torpedo tube valves. As I previously wrote about, the Scorpion had already reported, a problem with substantial seawater leaks through these valves. On return to Norfolk at the conclusion of this patrol the Scorpion was to go into the shipyard. These valves were on the work schedule to be repaired or replaced in the shipyard.

As soon as the valves began to allow flood waters to enter the Scorpion the flooding alarm would have been sounded and the nature of the emergency stated. All those personnel who had just gotten off watch would have reported to the torpedo room to combat the casualty. All those personnel preparing to relieve those currently on watch, would have reported to the adjacent watertight compartment as the backup damage control party. The entire ship would have immediately began taking necessary steps to stop the flooding and regain safe operation and control of the ship. Those on watch would have began taking the ship to a shallower depth and began making preparations to surface the ship if necessary.

Due to the water flooding into the ship, Scorpion became heavy and began slowly sinking because of the extra water weight.

As ship’s personnel lost control of the ship’s depth and it began going deeper, those on watch would have attempted all available means to surface the ship.

These actions failed.

As the ship continued its descent passing below 300 feet (its officially reduced safe operating depth) the shaft seals began leaking. This was a recurring problem that had been previously fixed and was also scheduled for work in the shipyard.

As the ship continued to descend the sea pressure outside the hull would have increased causing the flow of water into the torpedo room and engine room to increase.

All hands would have been actively doing all within their power to stop the two flooding casualties and regain control of the ship. The damage control party would have been in the torpedo room and the backup damage control party would have been in the engine room.

At some point, probably at or below the theoretical crush depth of the submarine. The watertight bulkhead (wall) between the axillary machinery space and the engine room collapsed, causing the engine room to “telescope” inside the machinery space (one compartment was shoved inside the other by the sea pressure outside the Scorpion). At or shortly after that event the bulkheads for the operations compartment would have collapsed flooding the last dry compartment of the submarine.

The ship would have continued its descent to the ocean floor carrying its crew on eternal patrol.

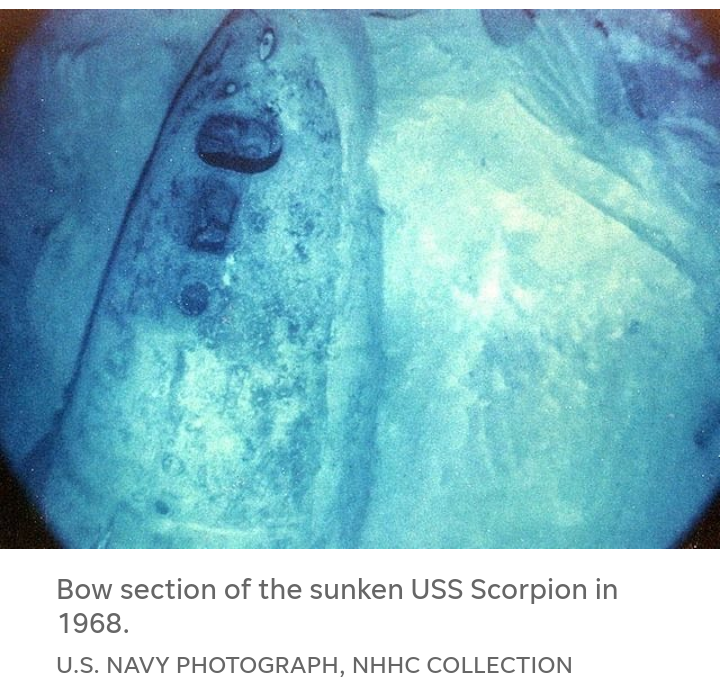

The physical condition of the operations compartment as it now rests on the bottom indicates the casualty did not start in the operations compartment. But that the bulkheads collapsed under extreme pressure. Probably below the ship’s designed crush depth.

The physical condition of the torpedo and engine rooms as they are now, resting on the bottom, the bulkheads for these two compartments did not collapse which indicates the area inside these compartments was equal or almost equal to outside sea pressure.

Actually, based on what little photographic evidence the navy has made available, the casualty could have started as I believe in the torpedo room. Or the casualty could have started in the engine room.

What I am certain of is that both compartments had flooding which exceeded the ability of the crew to stop. And, though not the only possible source, the torpedo tube valves and the shaft seals are the most likely candidates for the source of the flooding.

It must be remembered that for any emergency aboard a submerged submarine, the crew only has seconds to regain control if the submarine is going to survive. Sound recordings by the navy of the sinking of the USS Scorpion show that the entire emergency, from start to implosion of the bulkheads, took approximately 90 seconds.

Each member of the crew would have continued to do everything within his power to regain control of the ship until he was permanently incapacitated. Gratefully, this was not a long period of time and the men did not have to endure a long period of suffering.

Were Soviet ships nearby? Was there a fire or electrical problem onboard? Was there a problem with some other system including the weapons? The answer to these questions is maybe, maybe not. But if any of those problems did exist, it is not what took down the Scorpion.

As the Scorpion descended below its actual crush depth the engine room and torpedo room were at or near outside sea pressure inside those compartments. Inside the operations compartment was no where near sea pressure as the ship descended below crush depth.

Based on information currently available from the United States Navy I believe this is the best possible explanation for what happened to the USS Scorpion and the 99 men of her crew.

I believe the crew did everything possible that a highly trained submarine crew could possibly have done. Circumstances simply overwhelmed them.

“Good and faithful job sailor, rest your oars.”

P.S.

The Subsafe program was instigated after the loss of the USS Thresher on 10 April 1963. A board of inquiry was convened to investigate the loss of the ship. The board went far and beyond its requirement, to determine the loss of the USS Thresher. It looked at every aspect of the design, construction, and operation of nuclear powered submarines.

The board included a recommendation in its final report, large and wide sweeping changes to every aspect of the design, construction, and operation of nuclear powered submarines. These findings became the foundation of a new system – Subsafe. The intent was to stop any future preventable accidents from happening to United States submarines. The navy then required that all submarines go through a conversion in the shipyard to bring all the ship’s equipment and systems up to Subsafe standards.

After the submarines in the Thresher class (the first ship in this class) had gone through Subsafe conversion it was determined that the changes were sufficient from the original design to name it a new class. The USS Permit, formerly the second ship in the Thresher class, was now the first ship in the new class. This new class of submarine was now called the Permit class.

The loss of the USS Thresher sent shockwaves throughout the submarine community worldwide of friend and foe alike. Navies around the world watched the United States Navy and adopted programs similar to Subsafe for their own submarine forces. The loss of the USS Thresher has saved the lives of thousands of men and women who continue to take those damnable ships beneath the ocean. The loss of the USS Thresher and the USS Scorpion had effects which continue to impact the safety of submarines around the world to this day.

P.S.S.

There are many people, particularly submarine veterans who want the United States Navy to do a proper investigation and come clean with all it has on the loss of the USS Scorpion. The following is just one of many articles that back this up.

https://www.google.com/amp/s/amp.usatoday.com/amp/1692343

Advertisements

3 Comments

Filed under history, ships, submarines, USS Scorpion

USS Scorpion


I have written other articles and one poll on the USS Scorpion (you may search my archives to find them), so I will not rehash those articles now. May 27, 2018, marks the 50th anniversary of the loss of the USS Scorpion and the 99 men aboard her. The last time the Scorpion left port it’s underway was momentarily delayed so that a crewman could leave the ship to fly back to Norfolk, Virginia on emergency leave. He was on pier 22 that rainy Memorial Day 50 years ago, waiting with the families for the return of his ship and his shipmates. I salute the 100th member of the crew as well, and thank him for his many years of service to the submarine service. What actually sank the USS Scorpion has still not been settled. Unlike the USS Thresher, which was lost 5 years before the Scorpion, the United States Navy still considers the loss of the Scorpion a matter of national security and keeps part of the official record classified to this day. Decades after all the material on the loss of the USS Thresher as been declassified. The USS Thresher is in 15,000 feet of water off the coast of New England, and is in the condition you would expect of a submarine which imploded. However, much of the USS Scorpion looks recognizable. Though the engine room was forced inside the machinery room and the sail (conning tower in the Hollywood movies) was separated from the ship, large portions of the sub look as it did when she was tied up in port. What we do know about the USS Scorpion is that her last overhaul was supposed to be three years. But, was cut to less than a year as a cost saving measure by a Defense Department dealing with the increasing costs of the war in Vietnam. (After the loss of the USS Scorpion this cost saving measure was discontinued). We also know that the Navy has a few dozen photographs and no video footage of the wreckage on its archive website. The navy claims this is all the film it has on the Scorpion wreckage. Dr. Robert Ballard in his memoirs details the weeks he spent (just before finding the Titanic) taking still and video film footage of the USS Scorpion for the navy as well as checking on the integrity of nuclear material at the site. (All of the nuclear material is safe and has not contaminated any of the ocean or sea floor). None of Dr. Ballard’s still or video photography is even acknowledged by the United States Navy to exist, and certainly not allowed to be seen by the families or the public. The time has come for the United States Navy to declassify all the material the navy and the United States government has on the Scorpion. Not to fuel another book or movie, not to fuel the public’s morbid curiosity, not to satisfy the thousands of submariners who have never forgotten the Scorpion or her crew, but to give closure to the families and loved ones of the entire crew of the USS Scorpion. Wives, daughters, sons, siblings, mothers, fathers, and loved ones will never be able to visit the grave of their loved ones. But they do deserve the closure of knowing the entire story of the final chapter of the USS Scorpion and their loved ones still on eternal patrol. If the navy does not want to release that information to the public, I as a submarine veteran, support that, but only on the condition that they DO release that information to the families. Any submariner will tell you the things we did under the sea were only possible because of the support we received from our loved ones back home. The families deserve the full unabridged story, even if that story cannot yet be made public. Mr. President, Mr. Secretary, Chief of Naval Operations – it has been 50 years. The time has come for you to give closure to the families. To the families of the USS Scorpion and USS Thresher, I want to tell you that your loved ones live on in the heart of every sunmariner world wide. I have personally heard the stories of submariners from the Soviet Navy, British Navy, Canadian, Navy, French Navy and others. They always speak of the exact moment and what they were doing the moment they heard of your loss. They all speak of the shock and the difficulty in believing that such an event actually happened. They also speak of changes in the design, construction, and operation of submarines after that loss. Then they go on to tell of specific incidents where those changes were responsibly for their own submarines being able to return to port after an emergency while submerged at sea. Your husband’s, your daddies, your brothers, your sons; they did not die in vain. They have saved the lives of unknown thousands of their brothers and sisters, some of whom continue to go to sea on submarines. We will never forget your loved ones. And as long as men and women continue to wear dolphins (submarine warfare pin) WE will always be your family. May God bless and keep you all.

5 Comments

Filed under history, ships, submarines, USS Scorpion

Monturiol Inventor, Writer, Publisher, Activist, and Submariner


Narcis Monturiol

Narcis Monturiol

Narcis Monturiol, born 28 Sept 1819, died 6 Sept 1885. Now, on to the man, he graduated law school but never practiced law. He became a writer and publisher, inventor and politician. He was a socialist who wanted to create a utopian community where people could live together, “each according to his ability, each according to his needs.” He also produced Spain’s first communist newspaper. In 1848, one of his publications was suppressed by the government and he was forced into exile in France. When he was allowed back in the country his publishing activities were greatly curtailed. By 1868 he was a member of the Assembly. Just a few of his other inventions included a machine for making cigarettes, a method for preserving meat, and a rapid-firing cannon, as well as a continuous printer.

One of his most remarkable inventions was the Ictineo. A submarine he hoped would help coral divers and save lives. Considering Ictineo I was finished and performed its first dive in September of 1859, it was a pretty remarkable submarine. Monturiol studied all of the available materials and the work of other submarine inventors before designing his submarine. He sought assistance from the government, when he was turned down he went to the people of Spain. More than 300,000 pesetas came in from the people of Spain and Cuba to help him build his submarine.

The submarine handled great, but the speed was disappointing. Like so many submarines designed in the 19th century it was powered by manpower. The submarine successfully completed more than 50 dives before a cargo ship ran into it while it was tied up at its berth. On 2 October 1864 Ictineo II was launched.

The submarine had a double hull with ballast tanks in between the hulls. The submarine’s pitch could be controlled with a weight on a rail that ran the length of the submarine enabling the submarine to hover. This was a feature that submarines would not have again for almost 100 years. The shape, like modern submarines, was that of a fish so that it would move through the water better. He developed his own method of navigating and used calcium hydroxide to remove carbon dioxide from the air.

Monturiol performed many experiments to find a better propulsion system for his submarine. He came up with a chemical process that produced enough heat to run a small steam engine which almost doubled his speed to 4.5 knots (5.2 mph – 8.3km/h). His chemical process produced oxygen as a byproduct.

Source of image: Ictineo II replica at the harbour of Barcelona taken on October 2003 Author: Flemming Mahler Larsen

Source of image: Ictineo II replica at the harbour of Barcelona taken on October 2003
Author: Flemming Mahler Larsen

Unfortunately, by the time Ictineo II was finished and tested Monturiol was bankrupt. His submarine was sold at auction to cover his debts. The Spanish government taxed ships, so the new owner broke up the ship and sold it for scrap.

Many of Monturiol’s innovations were not seen in submarines again until the twentieth century. And Ictineo II was the first submarine designed and built that could operate without the need of oxygen from the surface. A capability the Germans experimented with during World War Two, but which was not fully realized until the nuclear powered submarines of the second half of the 20th century. The United States submarine USS Nautilus SSN-571 was the first nuclear powered ship in the world when it went into service in the late 1950s.

There were many men around the world during the 19th century who were working hard to build a viable submarine. Most had little or no help and used the materials they already had. Some of the would be inventors never realized their dream of building a submarine. Of the one who did, some died in their craft, others successful and a few even acquired fame (at least locally) for their underwater craft.

Unfortunately, very little is known of the majority of these 19th century submarines. The only ones that are still in existence are the ones which sank and were recovered much later. The designs and drawings for these 19th century wonders have been lost to time for the most part. Often only a few sketches or a newspaper article is all that remains. Even fewer photographs have survived.

That adventurous spirit still survives though. There are men and women who are determined to build their own miniature submarines to this day, and they share their knowledge, ideas, results, and photos in online groups and chats set up for armature submarine designer/builders. Once someone is “bitten by the bug” it is an addiction that won’t go away.

Original: Drawing from Author, 1858. Photograph is my own work. The author of this photo did not include his name. If you know who the author is, please contact us so we may give him/her credit.

Original: Drawing from Author, 1858. Photograph is my own work.
The author of this photo did not include his name. If you know who the author is, please contact us so we may give him/her credit.

Comments Off on Monturiol Inventor, Writer, Publisher, Activist, and Submariner

Filed under history, New, ships, submarines

A Seasoned Salt: Part 3


At the end of the war with England, John Paul found himself a naval officer without a ship. The Congress decided the country did not need naval ships in peace time. This was when John Paul accepted a commission as an admiral in the Russian Navy, on the condition that he was allowed to keep his US citizenship and position in the United States Navy.

In the Russian Navy John Paul was made an admiral and was quite successful against the Turks in the Black Sea. Successful enough that several officers spent more time trying to destroy John Paul than they did the Turks. They were partially successful in that John Paul was recalled to Moscow and faced charges of rape, but the charges were eventually dropped. He was awarded the Order of St. Anne, and left a month later an embittered man.

John Paul returned to Paris, where he lived out the rest of his life. On his death his body was escorted by a small group of servants, friends, and family to a small cemetery used by the French royal family. Over the years the cemetery was sold and used for a variety of purposes.

One hundred fifteen years later the United States Ambassador to France made it a one-man mission to find the grave of John Paul. After six months of dedicated work he was successful. The body of John Paul was sent back to the United States aboard the USS Brooklyn, three other United States cruisers and a squadron of French Naval vessels. On approaching the coastline of the United States the fleet was joined by seven battleships of the United States Navy. The body was temporarily interred at Bancroft Hall at the United States Naval Academy until his permanent tomb could be finished. In 1913, his body was interred in its final resting place at the Naval Academy Chapel in a vault under the altar.

The name that John Paul chose when he left British service was Jones. And that is the name by which he is known in the United States, John Paul Jones, the father of the United States Navy. His ship the Poor Richard, you have probably her of his ship under its French name, the Bonhomme Richard.

1 Comment

Filed under history, navy, New, ships

A Seasoned Salt: Part 1


Today I want to tell you about a young man born in Scotland where his father was a gardener. He was born John Paul and his older brother was William. William set out for Virginia to make his fortune. When John was a teenager he took to the sea. John joined the merchant fleet and worked hard; becoming a first mate by the time he was 18. When he was 20, he said aboard a ship named John.

During this voyage aboard the John, the Captain and ranking mate both became sick and died at sea. Twenty year old John Paul brought the ship and its cargo safely into port. Impressed and grateful to the young man, the owners made John Paul the captain of the John and gave his ten percent of the cargo as a reward.

During his second voyage he had a carpenter flogged. This incident lead to a charge of unnecessarily cruel punishment the charges were dismissed, but not before harm had been done to John Paul’s reputation. However, the carpenter died several weeks later. The carpenter’s family being politically connected in Scotland, Paul was brought up on charges and imprisoned. The cause of death was not related to the flogging and eventually Paul was released on bail.

Next, John Paul was in command of a ship headed to Tobago in the Caribbean. During this voyage there was an attempted mutiny and Paul killed one of the mutineers, a man named Blackton, with his sword. In the mean time his brother William had died in Fredericksburg, Virginia without a family of his own. So, John Paul decided to change his name and go to Virginia and settle his brother’s estate. He was not wanted for any crimes, but with the political influence of Blackton’s family he felt it was a good idea to change his name and home.

Shortly after settling his brother’s estate, John left for Philadelphia to join the navy. With help of a respected officer in the army and political connections, John was able to obtain a commission as a first lieutenant in the navy.

In “A Seasoned Salt: Part Two” we will look at the naval exploits of our young first lieutenant.
